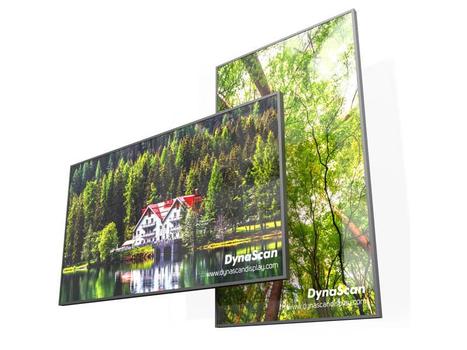

DYNASCAN 86" Ultra-High Brightness 4K

86” 3500 nits 4K UHD High Brightness Digital Signage Display

• Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, the DS861LR4 features a high brightness LED backlight producing a 3500 nits sunlight-viewable image.
• Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
• Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
• With 4K Ultra HD resolution, the DS861LR4 provides a super sharp image for easy-to-read text and incredible detail.
• An integrated Android™ based media player with WiFi offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
• An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems, Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification, but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.

• PANEL
• ​​​​​​​LCD Panel Size: 85.6 inches LCD
• ​​​​​​​Native Resolution: 3840 x 2160 ​​​​​​​
• Backlight: LED ​​​​​​​
• Default Color Temperature: D65 (6500 K) ​​​​​​​
• Brightness: 3500 nits
• ​​​​​​​Color Depth: 10 bits ​​​​​​​
• Contrast Ratio: 3000:1
• ​​​​​​​Response Time (Typ.): 8 ms ​​​​​​​
• Viewing Angle: 178° / 178° ​​​​​​​
• Light Life Time (Typ.): 100,000 hrs
• ​​​​​​​Blackening Defect Free: Up to 110°C (230°F)
• ​​​​​​​Polarized Sunglass Support: Yes
• ​​​​​​​Panel Surface: AG Haze 3%, 2H
• POWER
• ​​​​​​​Power Supply: Internal
• ​​​​​​​Rated Voltage: 100 ~ 240 V, 50 Hz / 60 Hz
• ​​​​​​​Power On Mode (Typ./ Max): 750 W / 1300 W
• ​​​​​​​Power Saving Mode: < 1 W
• MECHANICAL SPECS
• ​​​​​​​Bezel Width (T/B/L/R): Even Bezel 17.8 mm
• ​​​​​​​Cabinet Color: Black
• ​​​​​​​Dimension (LxHxD): 1935.8 x 1106.8 x 79.0 mm
• ​​​​​​​Monitor Weight: 77 kg ​​​​​​​
• Orientation: Portrait / Landscape ​​​​​​​
• VESA Mounting: 600 x 400 mm
• ​​​​​​​Carrying Handles: Yes
• USER INTERFACE
• ​​​​​​​Language: English ​​​​​​​
• Support SNMP (Up to V3.0): Yes
• ​​​​​​​Dimming Control: Yes
• ​​​​​​​Image Retention Proof: Yes ​​​​​​​
• Auto Orientation Sensor: Yes
• ​​​​​​​Ambient Light Sensor: Yes
• ​​​​​​​Power On/Off Scheduling: Yes
• ​​​​​​​Internal Temperature Sensor: Yes ​​​​​​​
• OSD Menu Rotation: Yes
• EXPANSION SLOT FOR INTEL® SDM
• ​​​​​​​SDM Slot: SDM-S (support with DynaScan extended board) & SDM-L Compatible (Not included) ​​​​​​​
• Power Support: Up to 45 W
• INPUT
• ​​​​​​​HDMI: x2 (2160p)
• ​​​​​​​DisplayPort: x1 ​​​​​​​
• USB 3.0: x1 (USB 3.0)
• ​​​​​​​Micro SD Slot: x1
• OUTPUT
• ​​​​​​​Audio: x1
• EXTERNAL CONTROL
• ​​​​​​​RS-232: In x1
• ​​​​​​​RJ-45: x2 (LAN)
• INTERNAL PLAYER
• ​​​​​​​Operating System: Android 8.0 ​​​​​​​
• Storage: Internal: 16GB eMMC Flash External: Support Micro SD , Up to 32GB(exFAT) /128GB(FAT32)
• ​​​​​​​Multimedia: 4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) ​​​​​​​
• Wi-Fi Specification: 802.11 b/g/n | 2412.0MHz - 2462.0MHz
• ENVIRONMENT
• ​​​​​​​Operating Temperature: 0° C ~ 45° C
• ​​​​​​​Storage Temperature: -20° C ~ 60° C ​​​​​​​
• Humidity: 10% ~ 80% RH Non-condensing
• CERTIFICATION
• ​​​​​​​CE / FCC / RoHS
