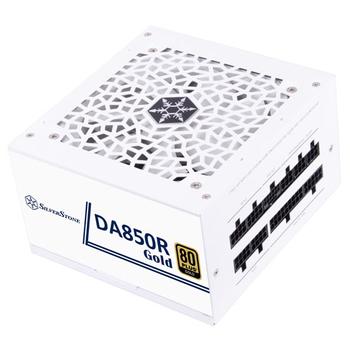

SILVERSTONE DA850R-GMA-WWW 80 PLUS

DA850R 80 PLUS Gold 850W ATX3.0/3.1 & PCIe 5 Fully Modular Power Supply

• 80 PLUS Gold efficiency certification
• Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX3.0/3.1 specification standard
• Latest PCIe Gen 5 standard to support up to 2X power excursion
• 24/7 continuous power output with 50℃operating temperature
• Silent running 120mm fan with advanced semi-fanless operation
• Compact design with a 140mm depth for easy integration

• SST-DA850R-GMA-WWW (White)
• SST-DA850R-GMA (Black)

• SST-AX0850MCGD-D

• White (lead-free paint)
• Black (lead-free paint)

• 850W

• 471W/L

• +3.3V / 20A
• +5V / 20A
• +12V / 70.8A
• +5VSB / 3A
• -12V / 0.3A

• 100W

• 850W

• 90 ~ 264 Vrms

• 47Hz ~ 63Hz

• Active PFC (PF>0.9 at full load)

• ≥87% & <89%

• 100,000 hours

• 0°C ~ 50°C

• Over Current Protection
• Over Power Protection
• Over Voltage Protection
• Short Circuit Protection
• Over Temperature Protection
• Under Voltage Protection

• 1 x 24 / 20-Pin motherboard connector
• 2 x 8 / 4-Pin EPS / ATX 12V connector
• 4 x 8 / 6-Pin PCIe connectors
• 1 x 12V-2x6 connector
• 8 x SATA connectors
• 4 x 4-Pin Peripheral connector

• Silent 120mm fan

• 0 dBA minimum

• 80 PLUS Gold

• ATX (PS2)

• 150mm (W) × 86mm (H) × 140mm (D)
• 5.91" (W) x 3.39" (H) x 5.51" (D)

• 2.13 kg
