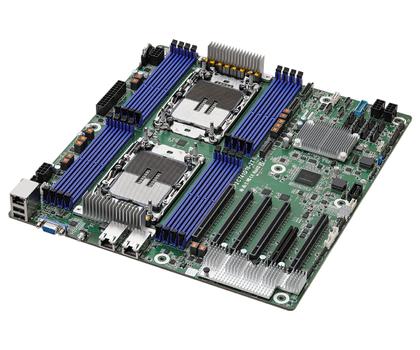

ASROCK Rack SP2C741D16-2T

SP2C741D16-2T

• TGPIO supporting precise time synchronization between devices
• EEB (12.12'' x 13.3")
• Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
• 8+8 DIMM slots (1DPC), supports DDR5 RDIMM/ RDIMM-3DS
• 5 PCIe5.0 / CXL1.1 x16
• 1 PCIe5.0 x8
• 2 MCIO (PCIE5.0 x8)
• 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s)
• Supports 1 M.2 (PCIe5.0 x4)
• Up to 13 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel X710-AT2
• Remote management (IPMI)

• Form Factor EEB
• Dimensions 12.12'' x 13.3" (307 x 337.82 mm)

• CPU Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
• Socket 1+1 Socket E (LGA 4677)
• Thermal Design Power 350W
• Chipset Intel® C741

• Supported DIMM Quantity 8+8 DIMM slots (1DPC)
• Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
• Max. Capacity per DIMM
  • RDIMM: 96GB
  • RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
• Max. DIMM Frequency
  • 5600 MT/s on 5th Gen Intel® Xeon® Scalable Processors
  • 4800 MT/s on 4th Gen Intel® Xeon® Scalable Processors
• Voltage 1.1V

• PCIe x 16
  • SLOT6: PCIe5.0 / CXL1.1 x16 [CPU0]
  • SLOT5: PCIe5.0 / CXL1.1 x16 [CPU1]
  • SLOT4: PCIe5.0 / CXL1.1 x16 [CPU0]
  • SLOT3: PCIe5.0 / CXL1.1 x16 [CPU1]
  • SLOT1: PCIe5.0 / CXL1.1 x16 [CPU1]
• PCIe x 8 SLOT2: PCIe5.0 x8 [CPU0]

• M.2 slot 1 M-key (PCIe5.0 x4); support 22110/2280 form factor [CPU0]
• Others 2 MCIO (PCIE5.0 x8) [CPU0]
• OCuLink 3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]

• PCH Built-in Storage Intel® C741 (Up to 13 SATA 6Gb/s, support RAID 0/1/5/10): 3 OCuLink for 12 SATA, 1 SATA 7-pin

• Additional GbE Controller 2 RJ45 (10GbE) by Intel® X710-AT2

• BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
• IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN

• Controller ASPEED AST2600: 1 DB15 (VGA), 1 header

• UID Button/LED 1 UID button w/ LED
• Video Port 1 DB15 (VGA)
• USB 2.0 Port 2 Type-A (UBS2.0)
• RJ45 2 RJ45 (10GbE), 1 dedicated IPMI

• Power Connector 1 (24-pin, ATX main power), 2 ( 8-pin, ATX 12V)
• Other Power Connectors 2 (8-pin, add-on card power & FAN)
• Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
• System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• COM Header 1 (9-pin)
• VGA header 1 (15-pin)
• Fan Header 8 (6-pin)
• TPM Header 1 (13-pin, SPI)
• VROC header 1
• SGPIO Header 2
• HSBP 2
• SMBus header 2
• PMBus header 1
• IPMB Header 1
• Clear CMOS 1 (contact pads)
• Others 2 (1-pin, TGPIO header)
• USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
• NMI Header 1

• Standby PWR LED 1
• 80 Debug Port LED 1
• Fan Fail LED 8
• BMC heartbeat LED 1

• BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
• BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash

• Temperature CPU, PCH, MB, Card side Temperature Sensing
• Fan
  • Fan Tachometer
  • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Fan Multi-Speed Control
• Voltage PSU +12V & +5VSB & +3.3V, +3VSB, PVNN_PCH, P1V05_PCH_STBY, P1V8_PCH_STBY, +BAT, PVCCIN_CPU0, PVCCIN_CPU1, PVCCINFAON_CPU0, PVCCINFAON_CPU1, PVCCFA_EHV_FIVRA_CPU0, PVCCFA_EHV_FIVRA_CPU1, PVCCD_HV_CPU0, PVCCD_HV_CPU1

• Microsoft® Windows® Server 2022 (64 bit)
• Linux
  • Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit)
  • SUSE Enterprise Linux Server 15 SP3 ( 64 bit)
  • Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit)
• Hypervisor: VMWare® ESXi 7.0 U3g / 8.0

• Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
• Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
