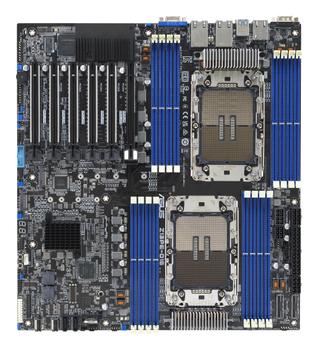

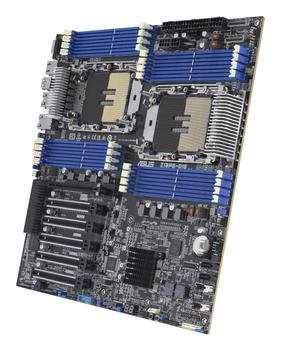

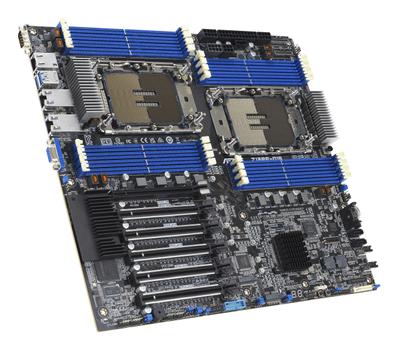

ASUS Z13Pe-D16/Asmb11 Intel C741

Z13PE-D16

• E-ATX board ready for dual 5th Gen Intel Xeon Scalable processors, with LGA 4677 socket, and supporting up to 350 W TDP
• A single CPU supports a maximum of three PCIe cards
• 16 x DDR5 4800 RDIMM for up to 4 TB RAM
• Integrated dual M.2 provides PCIe 5.0 x4 bandwidth for faster OS booting
• Dual Intel 10 Gbps Ethernet with teaming support
• Comprehensive IT-infrastructure-management solution with ASUS Control Center (ACC) and ASMB11-iKVM

• 2 x Socket
• Intel® Xeon® Processor Scalable Family (Up to 350W)

• Intel® C741 Chipset

• Total Slots : 16 (8-channel per CPU, 8 DIMM per CPU)
• Capacity : Maximum up to 2TB per CPU socket
• Memory Type :
  • 4th: 4800 MHz (1DPC)
  • 5th: 5600/4800 MHz (1DPC)
• Memory Size :
  • 64GB, 32GB, 16GB RDIMM
  • 256GB, 128GB RDIMM 3DS

• Up to 6 slots
• 5 x PCIe Gen5 x16 link
• 1 x PCIe Gen5 x8 link

• E-ATX (12”x13”, 304.8mmx330.2mm)

• 10 x SATA 6Gb/s ports (8 by 2 Slimline SASConnector)
• 2 x M.2 connector (1 up to 2280, 1 up to 22110)

• 2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
• 1 x Mgmt Port

• Aspeed AST2600 64MB

• 1 x TPM header
• 3 x PSU Power Connector (1 x 24-pin ATX power connector + 2 x 8-pin ATX 12V power connector)
• 1 x USB3.2 Gen1 header
• 1 x USB 2.0 header
• 8 x Fan Header, 4pin
• 1 x SMBus
• 1 x Chassis Intruder
• 2 x M.2 connector
• 2 x MCIO connector
• 2 x SATA connector
• 2 x Slimline SAS connector
• 1 x Onboard header for optional management card

• 2 x USB3.2 Gen1 ports
• 1 x Serial Port
• 1 x VGA Port
• 2 x 10GbE LAN ports (RJ45, Intel X710-AT2)
• 1 x Mgmt Port

• ASUS Control Center (in-band)
• ASMB11-iKVM (out-of-band/BMC AST2600)

• Gift Box (1-in-1)
  • Net Weight : 1.75KG
  • Gross Weight : 2.75KG
• Bulk Pack (10-in-1)
  • Net Weight : 17.5KG
  • Gross Weight : 20KG

• Operation temperature: 10℃ ~ 35℃
• Non operation temperature: -40℃ ~ 70℃
• Non operation humidity: 20% ~ 90% (Non condensing)

• Gift Box (1-in-1)
  • 1 x I/O shield
  • 2 x SATA cables
  • 2 x Slimline SAS to SATA cables
  • 2 x M.2 screw
• Bulk Pack (10-in-1)
  • 1 x I/O shield
  • 2 x M.2 screw
