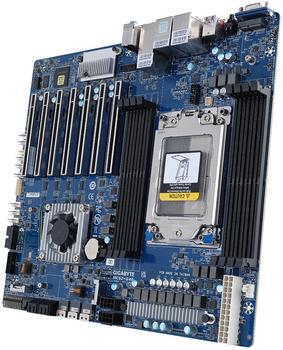

GIGABYTE WRX80 TR 5000 READY 8XDIMM 2X10GBE 4XSATA3 10PACK

MC62-G40 Rev. 1.x

• Single AMD Ryzen™ Threadripper™ PRO 5000/3000 WX-Series Processors
• 8-Channel UDIMM/RDIMM/LRDIMM DDR4, 8 x DIMMs
• 2 x 10Gb/s LAN ports via Intel® X550-AT2
• 1 x 1Gb/s LAN port via Intel® I210-AT
• 3 x SlimSAS connectors with PCIe Gen4 x4 or SATA interface
• 4 x SATA 6Gb/s ports
• 2 x M.2 slots with PCIe Gen4 x4 or SATA interface
• 1 x M.2 slot for Wi-Fi add-in cards
• 7 x PCIe Gen4 x16 and x8 expansion slots

• CEB
• 305W x 267D mm

• AMD Ryzen™ Threadripper™ PRO 5000 WX-Series Processors
• AMD Ryzen™ Threadripper™ PRO 3000 WX-Series Processors
• Up to 64 cores, 128 threads
• TDP up to 280W

• 1 x sWRX8

• AMD WRX80

• 8 x DIMM slots
• DDR4 memory supported only
• 8-channel memory architecture
• ECC UDIMM supported
• Total capacity up to 2TB (256GB LRDIMM)
• Memory speed: 3200/2933/2666/2400/2133 MT/s

• 2 x 10Gb/s LAN ports (Intel® X550-AT2)
• 1 x 1Gb/s LAN port (Intel® I210-AT)
• Supports NCSI function on Intel® I210-AT
• 1 x 10/100/1000 Mbps Management LAN

• Integrated in Aspeed® AST2600
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp

• Realtek® ALC4080 HD Audio Codec
• Supports 7.1 channel configuration
• 3 x Audio Jacks (Audio in/Audio out/Mic)

• CPU: 1 x SlimSAS connector (PCIe Gen4 x4 or SATA)
• FCH:
  • 2 x SlimSAS connectors (PCIe Gen4 x4 or SATA)
  • 4 x SATA 6Gb/s ports

• RAID 0/1/5/10

• Slot_7: PCIe x16 (Gen4 x16) slot
• Slot_6: PCIe x16 (Gen4 x16) slot
• Slot_5: PCIe x16 (Gen4 x16) slot
• Slot_4: PCIe x16 (Gen4 x16) slot
• Slot_3: PCIe x16 (Gen4 x16) slot
• Slot_2: PCIe x16 (Gen4 x8) slot
• Slot_1: PCIe x16 (Gen4 x16) slot
• 2 x M.2 slots for storage:
  • M-key
  • PCIe Gen4 x4 or SATA, from CPU
  • Support 2242/2280 cards
• 1 x M.2 slot for Wi-Fi:
  • E-key
  • Supports 2230 cards

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x FCH fan header
• 8 x System fan headers
• 2 x USB 3.2 Gen1 x2 headers
• 2 x M.2 slots for storage
• 1 x M.2 slot for Wi-Fi
• 3 x SlimSAS connectors
• 4 x SATA connectors
• 1 x Front panel header
• 1 x Backplane board header
• 1 x COM header
• 1 x PMBus header
• 1 x IPMB header
• 1 x TPM header

• 1 x USB 3.2 Gen2x1 (Type-C)(FCH)
• 4 x USB 3.2 Gen2x1 (Type-A)(CPU)
• 1 x USB 3.2 Gen2x1 (Type-A)(FCH)
• 1 x VGA
• 2 x RJ45 (10Gb/s)
• 1 x RJ45 (1Gb/s)
• 1 x MLAN
• 3 x Audio jacks
• 1 x ID button with LED

• 1 x TPM header with SPI interface
• Optional TPM2.0 kit: CTM010

• Red Hat Enterprise Linux 8.2 (x64)
• Red Hat Enterprise Linux 8.3 (x64)
• Ubuntu 20.04 LTS (x64)
• Windows 10 (x64)
• Windows 11 (x64)

• ASPEED® AST2600

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

• Operating temperature: 10°C to 40°C
• Operating humidity: 8-80% (non-condensing)
• Non-operating temperature: -40°C to 60°C
• Non-operating humidity: 20%-95% (non-condensing)

• 1 x MC62-G40
• 1 x I/O shield
• 1 x Quick start guide
• 1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
• 4 x SATA 6Gb/s cables (500mm)

• 10 x MC62-G40
• 10 x I/O shields
