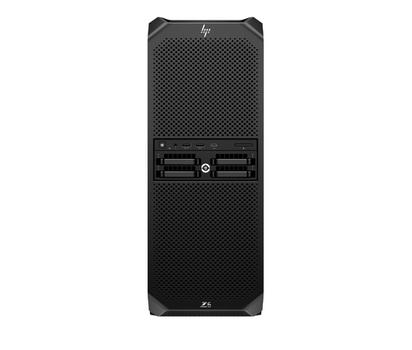

HP Z6 G5 A Workstation
CK7E9ET
The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen Threadripper PRO CPU, combines an astounding number of cores in a single CPU with up to 3 GPUs. Create and render at once on intensive projects.
Create, render, processall at once
Tear through rendering, simulations or 3D modeling. The system design packs up to 96 cores in a single workstation CPU1 so theres room for up to three high-end GPUs and eight memory channels. And, do it all with efficient performance per watt.
Expandable. Flexible. Whisper Quiet
Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory configurations. Conquer intense projects with a device designed to run quiet and cool.
Your AI powerhouse, in-house
Accelerate AI development and inferencing with space for up to 3 NVIDIA RTX GPUs, delivering incredible TOPS for advanced AI workflows. Process proprietary data securely on a local workstation for fast insights.
Designed with the planet in mind
At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.
Specifications:
| Operating System | Windows 11 Pro |
| Processor Family | AMD Ryzen™ Threadripper™ PRO processor |
| Processor Name | AMD Ryzen Threadripper Pro 9975WX up to 5.4 GHz max boost clock, 128 MB L3 cache, 32 cores, 64 threads |
| Memory | 128 GB DDR5-6400 MT/s ECC (4 x 32 GB) *Transfer rates up to 6400 MT/s. |
| Internal Storage | 1 TB HP Z Turbo Drive PCIe® Gen4 TLC M.2 SSD |
| Storage Controller | Integrated SATA 6.0 Gb/s; Integrated RAID 0, 1 available for SATA drives |
| Internal drive bays | Two 3.5" HDD Four PCIe® M.2 SSD |
| External drive bays | Four NVMe™ M.2 SSD One 9.5 mm ODD |
| Dimensions | 16.9 x 46.5 x 44.5 cm |
| Weight | Starting at 13.2 kg |
| Color | Black |
| Form Factor | Tower |
| Wireless WAN | Not included |
| Network Interface | Realtek RTL8111EPP-CG GbE |
| Audio | Realtek ALC3205-CG |
| Keyboard | HP USB 320K Keyboard |
| Pointing Device | HP Wired 320M Mouse |
| Expansion Slots | 4 PCIe 5 x16 2 PCIe 5 x4 1 PCIe 4 x16 3 PCIe 4 x4 * Rear bulkhead access can be achieved through all slots, but 2 PCIe 5 x4 and 2 PCIe 4 x4 are internal access only for M.2. |
| Front Ports | 4 USB Type-A 5Gbps signaling rate 1 charging 1 headphonemicrophone combo |
| Rear Ports | 1 audio-in/out 6 USB Type-A 5Gbps signaling rate 1 RJ-45 (1 GbE) |
| Other Ports | 1 USB Type-C® 20Gbps signaling rate;2 USB Type-A 5Gbps signaling rate;1 headphone/microphone combo |
| Power Supply | 1450 W internal power supply, up to 90% efficiency, active PFC |
| Software Included | HP PC Hardware Diagnostics UEFI HP Performance Advisor HP Support Assistant HP PC Hardware Diagnostics Windows HP Image Assistant HP Manageability Integration Kit HP Anyware HP Services Scan HP Data Science Stack Manager |
| Security Management | Full volume encryption HP Secure Erase Kensington lock slot Secure authentication TPM 2.0 certified HP BIOSphere HP Sure Run HP Sure Click HP Sure Sense HP Sure Admin HP Platform Certificate HP Sure Start HP Sure Recover Self-Encrypted Drives |
| Environmental | Low halogenEPEAT® registeredENERGY STAR® certifiedTCO Certified |
| Sustainable Impact Specifications | 40% post-consumer recycled plastic25% ITE-derived closed loop plasticBulk packaging availablePlastic cushion inserts contain 80% recycled contentMolded paper pulp cushion inside box is 100% sustainably sourced and recyclable10% post-consumer recycled plasticInternal power supply 90% efficiencyOcean-bound plastic in system and CPU fans |
| Manufacturer Warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
