INTEL S2600Stbr Motherboard Intel®
-
Processor-socket
LGA 3647
-
Chipset
Intel® C624
-
M.2 Slot
2
-
Minnesplatser
16 x DIMM, DDR4
-
Maximal RAM-frekvens
2.933GHz
-
Max minne stöds
2TB
-
Formfaktor
EEB
|

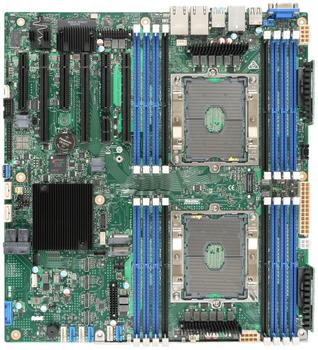

Server Board S2600STBR
Features:
- Standard EEB form factor with flexible I/O, storage, and networking capacity
- Ideal for performance storage, networking, web hosting, and security appliances
- High scalability and resiliency with no I/O compromise to support a wide range of workloads
Specifications:
Essentials
- Product Collection Intel® Server Board S2600ST
- Code Name Products formerly Sawtooth
- Limited 3-year Warranty Yes
- Extended Warranty Available for Purchase (Select Countries) Yes
- Additional Extended Warranty Details Dual Processor Board Extended Warranty
- # of QPI Links 2
- Supported Operating Systems VMware, Windows Server 2019, Windows Server 2016, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.5, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 12 SP4, Ubuntu
- Compatible Product Series 2nd Generation Intel® Xeon® Scalable Processors
- Board Form Factor SSI EEB (12 x 13 in)
- Chassis Form Factor Rack or Pedestal
- Socket Socket P
- Integrated Systems Available No
- Integrated BMC with IPMI IPMI 2.0 & Redfish
- Rack-Friendly Board Yes
- TDP 205 W
- Included Items
- (1) Intel® Server Board S2600STBR
- (2) SATA cables 880.00mm
- (1) IO shield
- (1) Protective insulator
- (1) Configuration label (sticker to be added to chassis)
- Board Chipset Intel® C624 Chipset
- Target Market Small and Medium Business
Supplemental Information
- Embedded Options Available No
- Description A standard form factor server board supporting two 2nd Generation Intel® Xeon® Scalable Processors, up to 205 W TDP, 16 DIMMs, and Dual 10GBase-T ports.
Memory Specifications
- Max Memory Size (dependent on memory type) 2 TB
- Memory Types DDR4 ECC RDIMM/LRDIMM 2133/2400/2666/2933
- Max # of Memory Channels 16
- # of Memory Slots 16
- ECC Memory Supported Yes
GPU Specifications
- Integrated Graphics No
- Graphics Output VGA
Expansion Options
- PCI Express Revision 3.0
- Max # of PCI Express Lanes 96
- PCIe x8 Gen 3 3
- PCIe x16 Gen 3 3
- PCIe OCuLink Connectors (NVMe support) 4
I/O Specifications
- # of USB Ports 7
- USB Revision 2.0 & 3.0
- Total # of SATA Ports 12
- RAID Configuration SW RAID 0/1/10 (5 optional)
- # of Serial Ports 1
- # of LAN Ports 2
- Integrated LAN (Optional) two 10 Gb SFP+ connectors
Package Specifications
Advanced Technologies
- Intel® Optane™ Memory Supported No
- Intel® Virtualization Technology for Directed I/O (VT-d) Yes
- Intel® Remote Management Module Support Yes
- Intel® Node Manager Yes
- TPM Version 2.0 (optional)
Security & Reliability
- Intel® AES New Instructions Yes
- Intel® Trusted Execution Technology Yes
