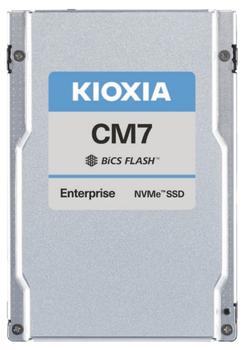

KIOXIA CM7-R Series KCMYXRUG30T7 - SSD - Företag, läsningsintensivt - 30.72 GB - inbyggd - 2.5" - PCI Express 5.0 (NVMe)

CM7-R Series (2.5-inch) Enterprise NVMe™ Read Intensive SSD 30.72TB SIE Model

• PCIe® 5.0, NVMe™ 2.0 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15 mm thickness
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• SFF-TA-1001 conformant (U.3)
• Dual-port design for high availability applications
• High performance with lower power consumption
• Power loss protection (PLP) and end-to-end data protection
• Suited for 24x7 enterprise workloads
• Security options: SIE, SED, FIPS SED

• 30,720 GB

• Form Factor 2.5-inch, 15mm thickness
• lnterface PCIe® 5.0, NVMe™ 2.0
• Maximum Interface Speed 128 GT/s (PCIe® Gen5 single x4, dual x2)
• Flash Memory Type BiCS FLASH™ TLC

• Sustained 128 KiB Sequential Read 10,000 MB/s
• Sustained 128 KiB Sequential Write 4,900 MB/s
• Sustained 4 KiB Random Read 1,600K IOPS
• Sustained 4 KiB Random Write 150K IOPS

• Supply Voltage 12 V ± 10 %, 3.3 V ± 15 %
• Power Consumption (Active) 25 W typ.
• Power Consumption (Ready) 5 W typ.

• MTTF 2,500,000 hours
• Warranty 5 years
• DWPD 1

• Thickness 15.0 mm +0 / -0.5 mm
• Width 69.85 mm ± 0.25 mm
• Length 100.45 mm Max
• Weight 130 g Max

• Temperature (Operating) 0 °C to 72 °C
• Temperature (Non-operating) -40 °C to 85 °C
• Humidity (Operating) 5 % to 95 % R.H.
• Vibration (Operating) 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
• Shock (Operating) 9.8 km/s2 { 1,000 G } ( 0.5 ms )
