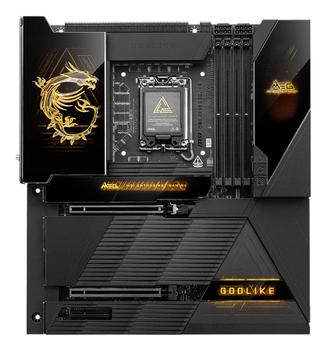

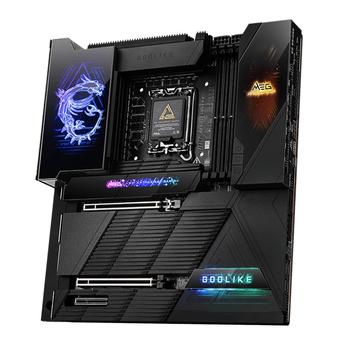

MSI MB Intel 1851 MEG Z890 GODLIKE 2

MEG Z890 GODLIKE

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
• M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
• THUNDERBOLTM5: The Thunderbolt 5 accessory card features dual Thunderbolt 5 ports, delivering up to 160Gbps of total bandwidth and up to 27W of rapid power delivery for charging.
• Ultra Performance: 26+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
• EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
• Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN + 5G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning Fast Game Experience: PCIe 5.0 slots, Total 8x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
• Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

• INTEL Z890

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 9200+ MT/s
  • 1DPC 2R Max speed up to 7200+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

• 2x Type-C DisplayPort
• Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

• 2x PCI-E x16 slot
• 1x PCI-E x4 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
• 7.1-Channel USB High-Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

• 8x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
• M.2_6 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 2280/2242 devices
• 4x SATA 6G
• M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
• M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• 1x Thunderbolt4 ports (Rear)
• 1x Thunderbolt4 ports (Front)
• Support up to 40Gbps transfer rate with Thunderbolt devices
• Support up to 20Gbps transfer rate with USB4 devices
• Support up to 10Gbps transfer rate with USB 3.2 devices
• Support up to 5V/3A,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Support up to 8K display

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Front)
• 8x USB 10Gbps Type A (Rear)
• 5x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

• 1x Marvell® AQC113CS 10Gbps LAN
• 1x Intel® Killer™ E5000B 5G LAN

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x Front Type-C Quick Charge Connector(PD_PWR1)
• 1x CPU Fan
• 2x Combo Fan (Pump_Sys Fan)
• 7x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Water Flow connector
• 1x Slow Mode Booting Jumper(JSLOW)
• 1x Front Audio (JAUD)
• 2x Thermal Sensor connectors(T_SEN)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• V-check point
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

• Intel® Killer™ BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

• 1x Dynamic Dashboard III
• 1x EZ Digit Debug LED
• 1x EZ LED Control switch

• USB 10Gbps (Type-A)
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 10G LAN
• 5G LAN
• Wi-Fi / Bluetooth
• HD Audio Connectors
• Thunderbolt 4 40Gbps (Type-C)
• USB 10Gbps (Type-C)
• USB 20Gbps (Type-C)
• USB 10Gbps (Type-C)
• USB 10Gbps (Type-A)
• Optical S/PDIF-Out

• Support for Windows® 11 64-bit

• E-ATX
• 277mmx304.8mm
