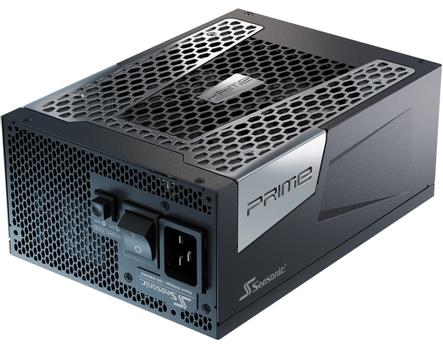

SEASONIC Prime-Tx-1600 Power Supply
Du måste logga in för att kunna handla/se priser.
|
|
SEASONIC Prime-Tx-1600 Power Supply
Artikelnr:
SSR-1600TR2(ATX3.0)
-
Kapacitet
1600W
-
80 PLUS certification
80 PLUS Titanium
|
PRIME TX ATX 3.1 1600W
Features:
- The PRIME TX 3.1 Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
- Warranty 12 Years
- Cabling Fully Modular
- Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
- ATX Specifications ATX 3.1 & PCIe 5.1
Specifications:
80PLUS®
Cybenetics Efficiency Level
Cybenetics Noise Level
Form Factor
Dimensions
Fan Information - Fan Size 135 mm
- Fan Control Digital Hybrid Fan Control
- Fan Bearing Fluid Dynamic Bearing
- Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information - Modularity Fully Modular
- Cable type Individual Black Cables with Braided Pattern
Electrical Features - Operating Temperature 0 - 50 °C
- MTBF @ 25 °C, excl. fan 100,000 hours
- AC Input Full Range
- Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental - Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
AC Input
- 100 V - 240 V
- 15 - 10 A
- 50 Hz - 60 Hz
DC Output
- +3.3 V / 25 A
- +5 V / 25 A
- +12 V / 133.3 A
- -12 V / 0.5 A
- +5 VSB / 3 A
Total continuous power
Cables
- MB (24/20 pins) 610 mm 1 connector 1 cable
- CPU (8/4 pins) 700 mm 1 connector 3 cables
- PCIe (8/6 pins) 750 mm 1 connectors 6 cables
- SATA 950 mm 4 connectors 4 cable
- SATA 3.3V 550 mm 2 connectors 1 cable
- Molex 690 mm 3 connectors 1 cable
- 12V-2x6 (12+4 Pins to 12+4 Pins) 700 mm 1 connector 2 cable
