SUPERMICRO Computer Case Full Tower
Artikelnr:
CSE-747BTQ-R2K04B
-
Nätaggregat
2000W
-
Typ
Tower
-
Färg
Svart
|

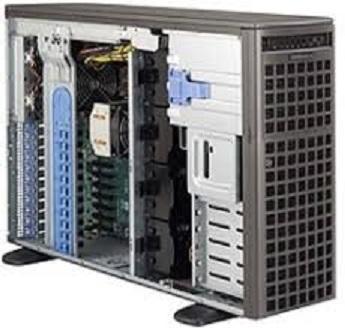

SuperChassis 747BTQ-R2K04B
CSE-747BTQ-R2K04B
Features:
- 8x 3.5 SAS/SATA Backplane for Hot-Swappable Drives (Support SES2)
- 11x Full-Height, Full-Length Expansion Slots Optimized for 4x Double Width GPU Solution
- Front HDD Door Lock & Side Panel Intrusion Switch
- Front I/O Ports: 2x USB 3.0
- (2x) Rear Additional 80mm PWM Fans & (4x) Middle Lower 92mm PWM Fans
- 4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 15.2 x 13.2/ ATX/Micro ATX
- 2000W Redundant Titanium Level Certified High-Efficiency Power Supply
- 3x 5.25" External HDD Drive Bays & 8x 3.5 Hot-Swappable HDD Drives
Specifications:
|
| Product SKUs |
|
| CSE-747BTQ-R2K04B | - SuperChassis 747BTQ-R2K04B
|
| |
| Form Factor |
|
| 4U tower/rachmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" |
| |
| Processor Support |
|
| Single and Dual Intel® / AMD processors |
| |
| Dimensions |
|
| Height | |
| Width | |
| Depth | |
| Net Weight | |
| Gross Weight | |
| Packaging (W x H x L) | - 27.2" (691 mm) x 13" (330 mm) x 38.2" (970 mm)
|
| Available Color | |
| |
| Expansion Slots |
|
- 11 full-height & full-length expansion slot(s)
|
| |
| Drive Bays |
|
- 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
|
| |
| Backplane |
|
- 8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD
|
| |
| Peripheral Drives |
|
- 1 x 90 degree rotatable drive cage
- 3 x standard 5.25" drive bay
- 1 x 3.5" internal fixed drive bay
|
| |
| Front Panel |
|
| Buttons | |
| LEDs | |
| Ports | - 2x USB 3.0 Port(s)
- 2x Audio Jack(s)
|
| |
| Systems Cooling |
|
| Fans | - 2 x 80mm Hot-swap PWM Fans
- 4 x 92mm hot-swap fan(s)
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range | |
| Non-Operating Temperature Range | - -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range | - 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range | - 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 2000W Titanium Redundant Power Supply W/PMbus |
| Power Efficiency | |
| Total Output Power and Input | - 1000W with Input 100 - 127Vac
- 1800W with Input 200 - 220Vac
- 1980W with Input 220 - 230Vac
- 2000W with Input 230 - 240Vac
- 2000W with Input 200 - 240Vac
|
| AC Input Frequency | |
| Dimensions (L x W x H) | |
| Output Type | |
| +12V | - Max: 83.3A (100Vac - 127Vac)
- Max: 150A (200Vac - 220Vac)
- Max: 165A (220Vac - 230Vac)
- Max: 166.7A (230Vac - 240Vac)
- Max: 166.7A (200Vac - 240Vac)
|
| +5Vsb | |
| Power Distributor | - PDB-PT747-4648
- O/P: 12/212
- +5V Max: 30
- +3.3V Max: 24
- -12V Max: 0.6
|
| Certification | |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC | - BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
|
