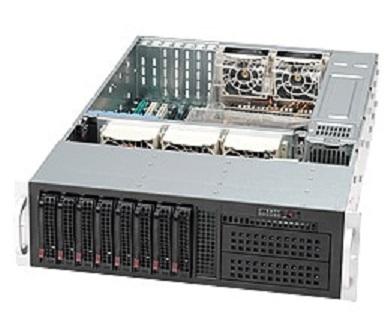

SUPERMICRO Computer Case Rack Black 920 W
Du måste logga in för att kunna handla/se priser.
|
|
SUPERMICRO Computer Case Rack Black 920 W
Artikelnr:
CSE-835TQ-R921B
-
Nätaggregat
1840W
-
Typ
3U
-
Färg
Svart
|
SuperChassis 835TQ-R921B
CSE-835TQ-R921B
Features:
- 3U chassis support for motherboard size - E-ATX and ATX.
- 8 x 3.5" hot-swap SAS/SATA, 2 x 5.25" drive bay
- SAS833/835 BACK PANEL WITH AMI MG9072
- 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
- 7 full-height & full-length expansion slot(s)
- 3 x 80mm Hot-swap PWM Fans
- 2 x 80mm rear hot-swap exhaust PWM fan(s)
Specifications:
|
| Product SKUs |
|
| CSE-835TQ-R921B | |
| |
| Form Factor |
|
| 3U chassis support for motherboard size - E-ATX and ATX. |
| |
| Processor Support |
|
| Dual and Single Intel® and AMD processors |
| |
| Dimensions |
|
| Height | |
| Width | |
| Depth | |
| Gross Weight | |
| Packaging (W x H x L) | - 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
|
| Available Color | |
| |
| Expansion Slots |
|
- 7 full-height & full-length expansion slot(s)
|
| |
| Drive Bays |
|
- 8 x 3.5" hot-swap SAS/SATA
- 2 x 5.25" drive bay
|
| |
| Backplane |
|
- SAS833/835 BACK PANEL WITH AMI MG9072
|
| |
| Peripheral Drives |
|
- 1 x slim DVD-ROM drive bay
|
| |
| Front Panel |
|
| Buttons | - Power On/Off button
- System Reset Button
|
| LEDs | - 2 Network Activity LEDs
- HDD activity LED
- Power LED
- Power Fail LED
- System Overheat LED
|
| Systems Cooling |
|
| Fans | - 3 x 80mm Hot-swap PWM Fans
- 2 x 80mm rear hot-swap exhaust PWM fan(s)
|
| |
| System Monitoring |
|
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range | |
| Non-Operating Temperature Range | - -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range | - 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range | - 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 920W Redundant Platinum Super Quiet power supply W/PMbus |
| Power Efficiency | |
| Total Output Power and Input | - 920W with Input 100 - 240Vac
|
| AC Input Frequency | |
| Dimensions (L x W x H) | |
| Output Type | |
| -12V | |
| +12V | - Max: 75A / Min: 1A (100Vac - 240Vac)
|
| +5Vsb | |
| +12Vsb | |
| Power Distributor | - PDB-PT825-8824
- O/P: 12V/75
- +5V Max: 30
- +3.3V Max: 24
- -12V Max: 0.6
|
| Certification | |
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC | - BSMI
- CCC
- CE/EMC
- FCC class B
- TUV/CB
- UL/CUL
|
