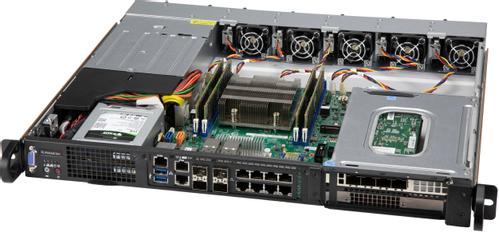

SUPERMICRO Computer Case Rack Black 800 W
Du måste logga in för att kunna handla/se priser.
|
|
SUPERMICRO Computer Case Rack Black 800 W
-
Nätaggregat
800W
-
Typ
1U
-
Färg
Svart
|
SuperChassis 515M-R804
515M-R804
Features:
- Front I/O short depth resource optimized chassis
- Support Proprietary WIO MB size up to 8"x10"
- 800W Redundant AC power supplies Platinum Level Certified
- 2x 2.5" Internal Drive Bays
- Up to 2x Full-height AOC expansion slot
- Up to 5x 40x56mm high-efficiency fans, hot-swappable
- Support Service Tag for system information
Specifications:
Product SKUs
Form Factor
- Support Proprietary WIO MB size up to 8"x10"
Processor Support
- Single Intel® and AMD processors
Dimensions
- Height 1.7" (43 mm)
- Width 17.2" (437 mm)
- Depth 15.7" (399 mm)
- Gross Weight 18 lbs (8.16 kg)
- Packaging (W x H x L) 27" (686 mm) x 8" (203 mm) x 24" (610 mm)
- Available Color Black
Expansion Slots
- Up to 2x Full-height, Half-length expansion slot(s)
Drive Bays
- Up to 2x 2.5" fixed drive bay with bracket
Front Panel
- Button
- Power On/Off button
- System Reset button
- LED
- Power status LED
- HDD activity LED
- 2 Network Activity LEDs
- Fan Fail/System Over Heat LED
Systems Cooling
- 3x 40x56mm counter-rotation PWM fan(s), hot-swappable
Operating Environment (System)
- Operating Temperature Range 5°C - 35°C (41°F - 95°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 8% - 90% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
- 800W 1U redundant power supply
- Power Efficiency 94%
- Total Output Power and Input
- 800W with Input 230 - 240Vdc
- 800W with Input 200 - 240Vac
- 750W with Input 100 - 127Vac
- AC Input Frequency 50-60Hz
- Dimensions (L x W x H) 220 x 54.5 x 40.25 mm
- Output Type Backplanes (gold finger)
- +12V
- Max: 62.5A / Min: 0.5A (100Vac - 127Vac)
- Max: 66.6A / Min: 0.5A (230Vdc - 240Vdc)
- Max: 66.6A / Min: 0.5A (200Vac - 240Vac)
- +5Vsb Max: 4A / Min: 0A
- Power Distributor
- PDB-PT515M-2424
- O/P: 12V/65
- +5V Max: 17A
- +3.3V Max: 13A
- -12V Max: 0A
- Certification Platinum Certified
Power Supply Safety / EMC
