SUPERMICRO Computer Case Rack Black,
Du måste logga in för att kunna handla/se priser.
|
|
SUPERMICRO Computer Case Rack Black,
Artikelnr:
CSE-LA15TQC-R860AW
-
Nätaggregat
860W
-
Typ
1U
-
Färg
Svart
|

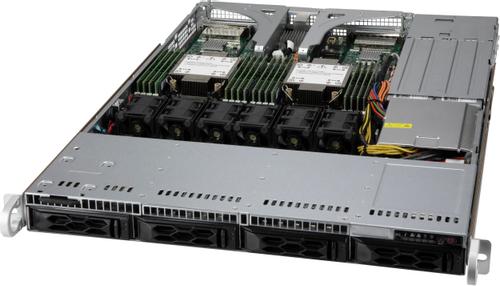

SuperChassis LA15TQC-R860AW
LA15TQC-R860AW
Features:
- 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
- 4 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
- SAS or enterprise SATA HDD only recommended
- 1U SAS/SATA Backplane with SES2 support
- 1U 860W Redundant power supply Platinum level, 24Pin output
- 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s)
- 4 x 40x56mm counter-rotation PWM fan(s) by default, 2x as optional
- Support Service Tag for system information
Specifications:
Product SKUs
- SuperChassis LA15TQC-R860AW
Form Factor
- 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4"
Processor Support
- Dual and Single Intel® and AMD processors
Dimensions
- Height 1.7" (43 mm)
- Width 17.2" (437 mm)
- Depth 25.6" (650 mm)
- Gross Weight 28 lbs (12.7 kg)
- Packaging (W x H x L) 23.7" (602 mm) x 7.7" (196 mm) x 34.1" (866 mm)
- Available Color Black
Expansion Slots
- 2x Full-height expansion slot(s)
- 2x S-AIOM expansion slot(s)
Drive Bays
- 4x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
- SAS or enterprise SATA HDD only recommended
Backplane
- 4-Port 1U 12Gbps Backplane Support 4x3.5 SAS3/SATA3 HDD/SSD
Peripheral Drives
- Optional 1x USB + COM port tray
- Optional 1x 2.5" internal fixed drive bay
Front Panel
- Button
- Power On/Off button
- System Reset button
- Unit Identification (UID) button
- LED
- Power status LED
- HDD activity LED
- 2 Network Activity LEDs
- Unit Identification (UID) LED
- Fan Fail/System Over Heat LED
Systems Cooling
- Fans 4x 40x56mm counter-rotation PWM fan(s)
System Monitoring
- Optional Chassis intrusion switch
Operating Environment (System)
- Operating Temperature Range 5°C - 35°C (41°F - 95°F)
- Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
- Operating Relative Humidity Range 8% - 90% (non-condensing)
- Non Operating Relative Humidity Range 5% - 95% (non-condensing)
Power Supply
- 800W/860W 1U redundant power supply
- Power Efficiency 94+%
- Total Output Power and Input
- 860W with Input 200 - 240Vac
- 800W with Input 100 - 127Vac
- 860W with Input 200 - 240Vdc
- AC Input Frequency 50-60Hz
- Dimensions (L x W x H) 322 x 54.5 x 40.25 mm
- Output Type Backplanes (gold finger)
- +12V
- Max: 71.6A / Min: 0A (200Vac - 240Vac)
- Max: 66.6A / Min: 0A (100Vac - 127Vac)
- +5Vsb Max: 4A / Min: 0A
- Power Distributor
- PDB-PT116-SL8824
- O/P: 12V/80
- +5V Max: 25A
- +3.3V Max: 25A
- -12V Max: 0.6A
- Certification Platinum Certified
Power Supply Safety / EMC
- BSMI
- CCC
- CE/EMC
- UL/CB
- UL/CUL
