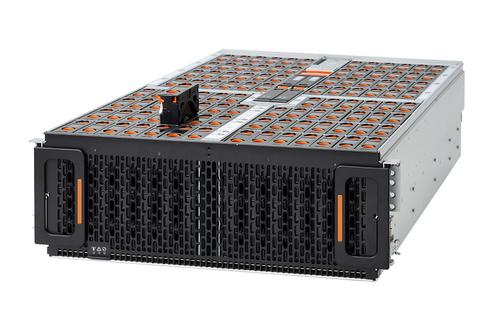

WESTERN DIGITAL SE4U102-102 HC550 1836TB NTAA HE SAS 512E SE TI H4102-J-18F41 EXT
Du måste logga in för att kunna handla/se priser.
|
|
WESTERN DIGITAL SE4U102-102 HC550 1836TB NTAA HE SAS 512E SE TI H4102-J-18F41 EXT
-
Gränssnitt
SAS
-
Installerad
1836TB
-
Max diskar
102
-
RAID
Ja
-
Typ
Rack (4U)
-
Diskstorlek
3.5"
|
Ultrastar Data102 Hybrid Storage Platform 1836TB
Designed for High Density and Flexibility
The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The Ultrastar Data102 provides up to 2.65PB1 of raw storage in 4U in a compact and efficient form factor. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD.
IsoVibe™ Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow™ Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Western Digital Resource Manager
A GUI-based tool that enables real-time monitoring and management of the platform and provides a consolidated dashboard displaying the most critical information. Other views allow platform configuration, health monitoring, and maintenance.
Features:
- Up to 102 Ultrastar HDDs (SAS or SATA)
- Up to 2.65PB raw capacity in 4U
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- 5-year limited warranty
Specifications:
Capacity
Max. Drives
- 102 x 3.5” drive bays
- Up to 24 can be SAS or SATA SSD
Drive Interface
Available Drive Capacities
- HDD up to 14TB
- SSD up to 15.36TB
Host Interface
- Dual redundant I/O Modules (IOM)
- 6 Mini-SAS HD ports per IOM
Weight
- Product without drives: 31.8kg (70lbs)
- Product with 102 HDDs: 118.8kg (262lbs)
LED Indicators
- Front/Rear: Power, ID, Fault
- Drive: Activity, Fault
Physical Dimensions
- Height: 175mm (6.89”)
- Width: 447mm (17.61”)
- Depth: 1047mm (41.25”)
- Depth in Rack: Max of 1197mm (47.13”) w/ dual CMA—includes 2 SAS cables
Management
- SCSI Enclosure Services
- Redfish (out of band, via RJ45)
Power
- Dual 1600W, 80+ Platinum
- 200-240V AC input, auto ranging, 50-60Hz
Cooling
- 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
- 1 IO module fan
- Dual PSUs with built-in fans
Environmental
- Operating Temperature: 5°C to 35°C
- Non-op Temperature: -40°C to 70°C
- Humidity: 5 to 85% relative humidity
- Operating Altitude: 40°C @ 3,000ft
- Sound Power: < 7.2Bels @ 23±2°C
Serviceability
- Cable-free hot-swappable IOM, power supply, fans and drives
